We still see projects in Guelph where the geotechnical report skips liquefaction screening because the seismic hazard feels low. That mistake gets expensive fast when a building inspector flags it under the Ontario Building Code. Guelph sits in a moderate seismicity zone, and the city's glacial outwash deposits along the Speed and Eramosa River corridors contain loose, saturated sands that are textbook candidates for cyclic mobility. The 2015 National Building Code of Canada now requires a formal liquefaction assessment for any Site Class D or E profile with a water table within 5 metres of grade. Our team runs this analysis on every project in the Hanlon Creek Business Park and the downtown redevelopment blocks—not because a client asks, but because compliant design demands it. A thorough seismic microzonation study can also refine your site-specific hazard before we proceed with the detailed analysis.

A factor of safety below 1.1 in a single sand layer can trigger a complete foundation redesign under NBCC 2015. We deliver that clarity before structural drawings begin.

Scope of work in Guelph

The soil conditions between the Arkell Road industrial zone and the stone-dust plains near Paisley Road are nothing alike. In the south end, you encounter dense Halton Till at shallow depth—low liquefaction potential, straightforward to classify. Move north into the alluvial flats near the river confluence, and you hit 6 to 9 metres of loose silty sand with fines content below 15 percent. That contrast is what makes Guelph projects tricky. Our methodology starts with SPT blow counts correlated to corrected (N₁)₆₀ values, then applies the simplified procedure from Seed and Idriss, updated with the 2001 NCEER workshop recommendations. We calculate the factor of safety against liquefaction for every critical layer, estimate post-earthquake settlement using the Tokimatsu and Seed method, and flag any stratum where FS drops below 1.1 under the 1-in-2,475-year event. For sites where we need a continuous shear wave velocity profile instead of discrete SPT data, we combine the analysis with MASW testing to capture Vs30 and refine the site class designation per NBCC Table 4.1.8.4.A.

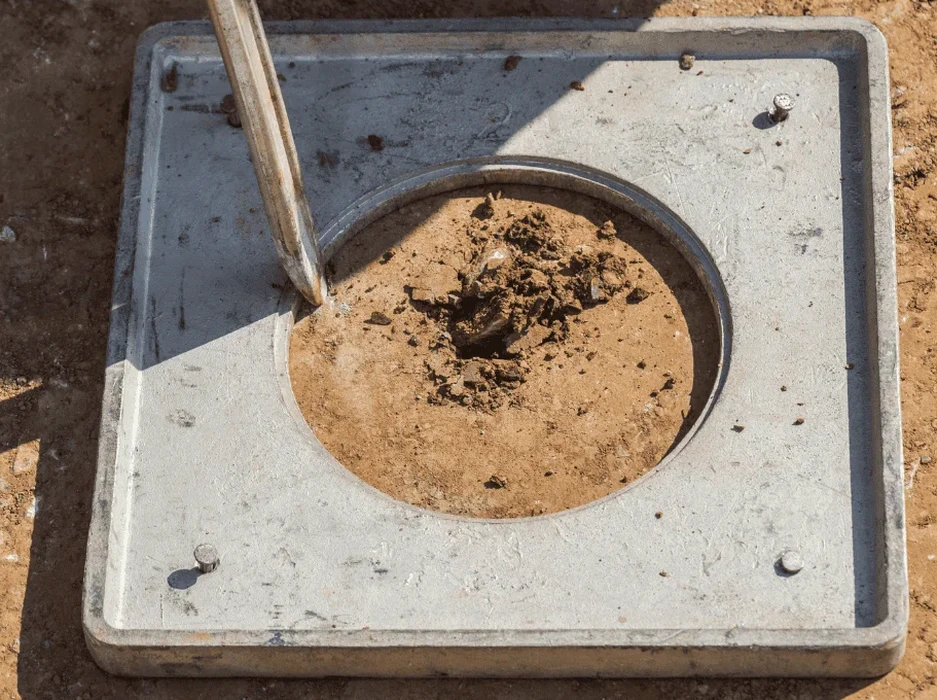

Soil Liquefaction Analysis in Guelph: Protect Your Project from Seismic Ground Failure

Parameter	Typical value
Design Earthquake	M7.0–7.5, 1-in-2,475-year return period (NBCC 2015)
Triggering Method	Simplified procedure (Seed & Idriss, NCEER 2001)
Penetration Index	(N₁)₆₀ corrected SPT blow count
Minimum FS Threshold	1.1 for critical structures, 1.0 for standard buildings
Fines Content Correction	FC ≤ 35% (granular liquefaction domain)
Settlement Estimate	Tokimatsu & Seed volumetric strain method
Lateral Spreading	Youd et al. (2002) empirical displacement model
Laboratory Backup	Cyclic triaxial (ASTM D5311) for confirmatory testing

Local geotechnical conditions in Guelph

Ontario Regulation 332/12, which adopts the NBCC 2015 with provincial amendments, makes the engineer of record responsible for identifying geotechnical hazards including liquefaction. In Guelph, the risk concentrates along the river floodplains and in areas underlain by glacial Lake Whittlesey deposits—fine sand and silt that lose shear strength dramatically under cyclic loading. The consequence is not just settlement. Liquefaction can induce lateral spreading toward free faces, damaging buried utilities and pile-supported structures alike. We have evaluated sites where a 0.15g peak ground acceleration, combined with a shallow water table at 2 metres, produced settlement estimates exceeding 75 millimetres. That amount of differential movement is incompatible with conventional footings. When spread footings are not viable, we often recommend ground improvement via stone columns to densify the critical layers and provide drainage paths that dissipate excess pore pressure.

Need a geotechnical assessment?

Reply within 24h.

Email: contact@geotechnicalengineering.co

Applicable standards: NBCC 2015 (National Building Code of Canada, Division B, Part 4), NCEER Workshop Recommendations (Youd & Idriss, 2001), ASTM D6066-11: Standard Practice for Determining the Normalized Penetration Resistance of Sands, ASTM D5311/D5311M-13: Standard Test Method for Load Controlled Cyclic Triaxial Strength of Soil, CSA A23.3-14: Design of Concrete Structures (seismic provisions)

Our services

Our liquefaction assessment in Guelph includes field investigation, laboratory testing, and engineering analysis. Each component is calibrated to the Ontario Building Code requirements.

SPT-Based Liquefaction Screening

We drill to depths of 20 metres or refusal, sampling every 1.5 metres with a standard split spoon. Corrected blow counts feed the Seed-Idriss simplified procedure, and we report factor of safety profiles for each borehole. This is the most cost-effective path for sites under 5,000 square metres in Guelph.

Cyclic Triaxial Confirmatory Testing

For critical infrastructure or sites with borderline FS values, we extract undisturbed Shelby tube samples and run stress-controlled cyclic triaxial tests per ASTM D5311. The lab data overrides empirical correlations and provides a defensible liquefaction resistance curve for the regulator.

Frequently asked questions

Is liquefaction assessment mandatory for a small commercial building in Guelph?

Under NBCC 2015 and the Ontario Building Code, any structure assigned to Seismic Category SC3 or higher requires a geotechnical report addressing liquefaction. Most commercial buildings in Guelph fall into this category. The city's building department will ask for it during permit review.

What does a soil liquefaction analysis typically cost for a Guelph project?

How deep do you need to drill to evaluate liquefaction in Guelph?

We typically extend boreholes to 20 metres below ground surface or to refusal on the bedrock. The critical zone in Guelph is usually between 2 and 12 metres—the depth range where loose glacial outwash sands are most common and the confining pressure is low enough for liquefaction to initiate.

Can you mitigate liquefaction risk without moving the building footprint?

Yes. Ground improvement techniques like vibrocompaction, stone columns, or deep soil mixing can densify the susceptible layers in place. We evaluate the post-improvement (N₁)₆₀ values and recalculate the factor of safety to confirm the treatment meets the NBCC threshold before foundation design proceeds.
